New: W 484 Test System

The tester for high voltage components for the e-mobility industry

[February 2018]

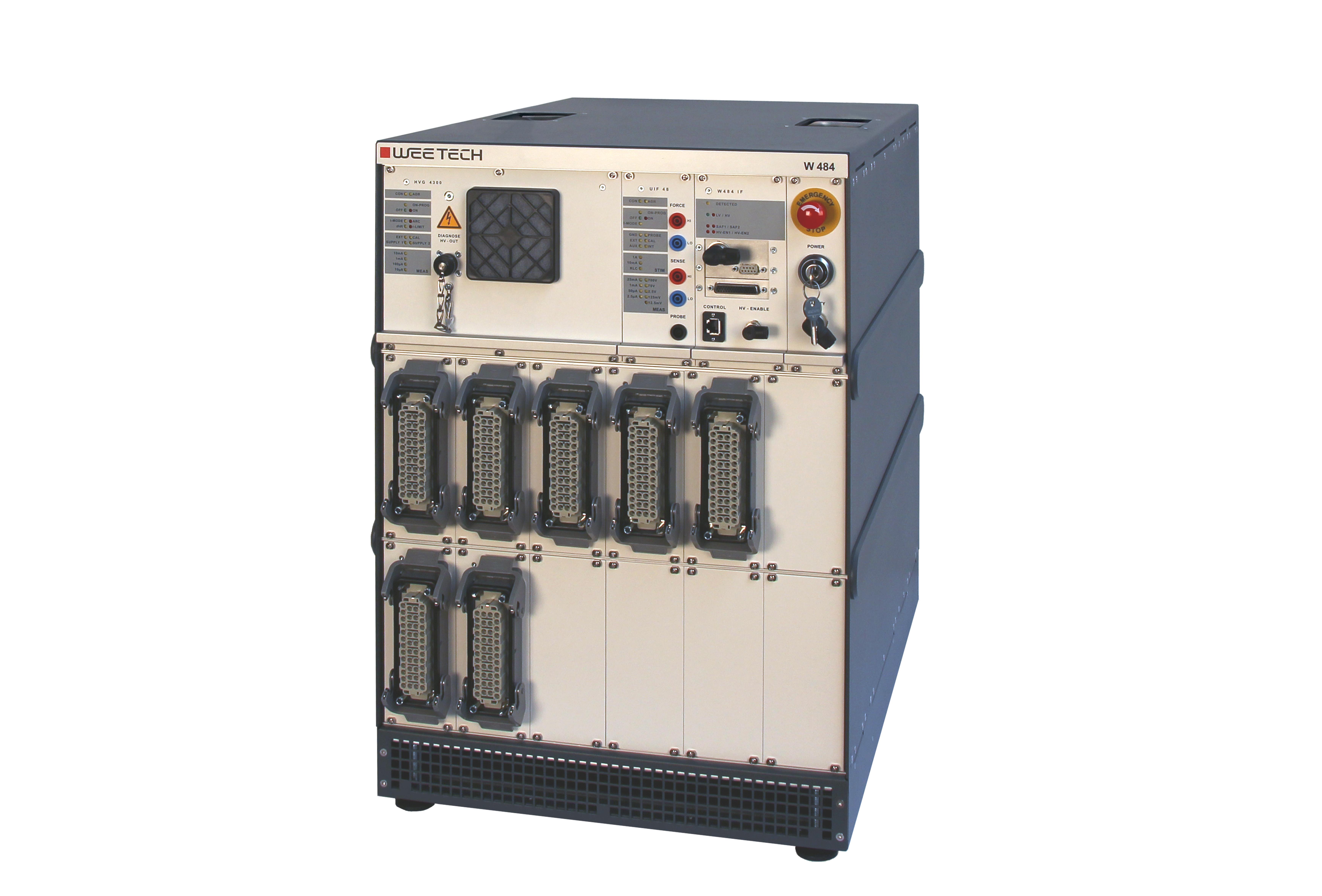

Wertheim. The compact W 484 Test System completes the portfolio of WEETECH GmbH in the high voltage tester sector. It has been specifically designed for high voltage cable harnesses and components of the rapidly growing e-mobility industry and meets the requirements of LV 123*, a multi-company standard for testing high voltage cable harnesses and components for electric or hybrid vehicles.

The newly developed high voltage generator HVG 4300 delivers voltages to 4,300 Vdc / 3,000 Vac and is current limited to a maximum of 3.8 mA. According to DIN EN 50191, the provided voltage is classified as non-hazardous, which can avoid complex safety precautions in production.

The test point cards with 44 test points each are available in two different versions up to 2,700 VDC / 1,900 Vac and up to 4,300 Vdc / 3,000 Vac. Generator and switching matrix are encased in a compact 19-inch housing, available in three different sizes. Depending on the model, the test system offers 44 to 792 test points, is portable, mobile or can be integrated into an adaptation table.

In addition to precise continuity tests in the µOhm range, the tester offers reliable ARC detection through innovative detectors that react immediately to voltage and current changes in the µs range. Optionally, adapter cables equipped with ID chips connect to any output connector on the system.

The new W 484 Test System is ideal for testing high voltage cable harnesses and components in the automotive industry and remains compact and cost-effective.

WEETECH, founded in 1973, is the leading global player in the market for cable and functional testers with headquarters in Germany and its own branches in the USA, Italy, the Netherlands, Singapore and China. In addition, WEETECH is represented by local distributors in 17 countries on all continents.

The product portfolio consists of test systems that ensure electrical connection and functionality in the production processes of cables, cable harnesses, electrical components and assemblies. WEETECH's customers are active across all industries with a focus on the automotive, aerospace and railway industries.
