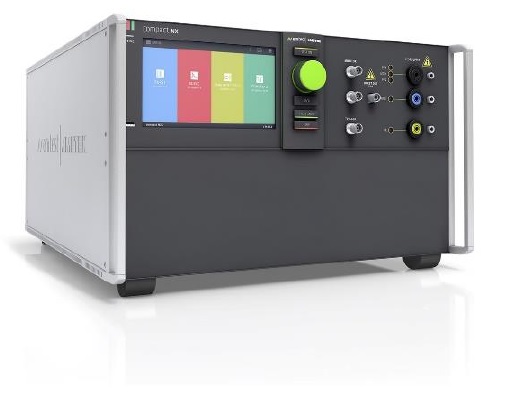

Launch of the compact NX7 transient generator
We are very pleased to announce the compact NX7 – the newest member of the NX family, a transient impulse generator that replaces the UCS 500N7 series.
The compact NX7 offers, a multifunctional test generator that meets and exceeds international and product-specific transient and power fail requirements. The compact NX7 series expands the voltage range of the compact NX5 series to 7.0 kV, and will replace the UCS 500N7 family in future. The generator has a modular design and can be manufactured with different combinations.
The following impulses are supported by the compact NX7:
- Surge 1.2/50 μs 8/20 μs 7.0 kV as per IEC 61000-4-5 & ANSI/IEEE C62.41.2 / 45
- Telecom Surge 10/700 μs 7.0 kV as per IEC 61000-4-5
- Ring wave 0.5 μs 100 kHz 7.0 kV as per IEC 61000-4-12 & ANSI/IEEE C62.41.2 / 45
- Burst impulse 5/50 ns 5.5 kV as per IEC 61000-4-4
- Power Fail as per IEC 61000-4-11 / -4-29
Further the compact NX7 offers following voltage/current combinations for EUT mains power:
- Nominal voltage for 300 V or 400 V
- Nominal current of 16 A or 32 A
