Transient emission

n  Transient emission








n  100 A Operation (40A with BSM 200N100)

n  Complete System

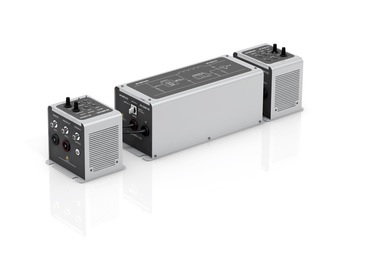

n  Three-Part System:

n  5 uH Artificial Network

n  300 ns Electronic Switch

n  Very Low Voltage Drop (1.2V at 100A)

n  Mechanical Switch Included

n  Controller on the modules

n  1000V max.

n  Most compact fully-compliant emissions system available

n  AN can be used for multiple other CISPR and ISO requirements

n  Can be bought separately






Add To Inquiry

TOTAL: 1

View:
Automotive Transient Emission Measurements as per ISO 7637-2

Automotive Transient Emissio...

Model : Transient Emission Set-iso-7637-2

*BS 200N100 - Electronic switch, 60V DC/100A:
*Volt.Drop <1.2V@100A, <0.2V@25A
*Peak voltage max. 1,000V
*Reverse-polarity/short-circuit protected
*BSM 200N40 - Mechanical switch, 12/24V DC/40A
*.......

Add To Inquiry
